TDP Explained: Thermal Design Power, with CPU as the Key Example

The purpose of this article is to understand in detail the nature of TDP (using CPUs as the primary example), to show why this concept cannot be taken simplistically, and to explain how this indicator comes into contact with the real world (PC assemblies, cooling systems, overclocking, and component selection). We will also look at what the marketing nuances are, why the TDP may differ from the actual power consumption of the CPU under load, and what this means for users building or upgrading a PC.

Table of Contents

• Introduction
• What is TDP in a CPU?
• How TDP Is Calculated (Intel vs AMD)
• TDP and Power Consumption
• How TDP Affects CPU Cooling
• How TDP Works in Laptops and Mobiles
• How TDP Impacts Overclocking
• TDP in PC Assembly
• TDP Numbers vs Reality
• TDP and Next-Gen CPUs
• FAQ
• Summary

Introduction

In the world of computer technology and PC assembly, thermal design power (TDP) is considered one of the most important concepts. This term often appears in the specifications of Intel and AMD CPUs and also in discussions when choosing a cooling system or evaluating power consumption. But what does TDP really mean? How is it calculated, does it affect the actual power draw, and why sometimes the figures given in the specifications do not match the figures obtained in real tests?

TDP indicates how much heat a cooler or other cooling system should be able to dissipate to ensure the stable operation of the CPU (or other part) under certain conditions. But often people mistakenly believe that TDP is directly equal to the power consumption of a CPU or GPU. In reality, everything is a little more complicated, because each company (Intel, AMD, graphics card manufacturers) has its own method for calculating TDP. Plus, modern CPUs can dynamically change frequencies and voltages, which sometimes gives significant spikes in energy consumption.

What is TDP in a CPU?

So, thermal design power is a value that indicates how much thermal energy a component can release when operating in the design (nominal) mode. For those wondering about the TDP meaning in CPU, it essentially reflects the amount of heat that must be dissipated to maintain stable performance. In other words, the manufacturer states that In order for this chip to work stably and not overheat, the cooling system must be able to dissipate at least X watts of heat.

Why is this indicator important? First, it provides guidance to manufacturers of motherboards, laptops, and off-the-shelf systems. If the CPU TDP equals 65 watts, then under normal load it is expected that the cooling should cope with these 65 watts of heat generation. Secondly, users who assemble PCs manually get an initial idea of what class of cooler they need. Of course, a 125-watt cooler is potentially safe for a CPU with 65 watts, but if you take a cooling system that is too weak, there is a high probability of throttling (automatic slowing of CPU to avoid thermal damage).

It is essential to understand that TDP is not a fixed upper limit of consumption. Rather, it is the average heat dissipation that is achieved under certain load scenarios determined by the manufacturer himself. TDP is often confused with real power consumption, but in practice, everything depends on many factors, including the current frequency, voltage, operation of boost algorithms (Intel Turbo Boost, AMD Precision Boost), and the overall thermal and electrical budget of the PC.

How TDP Is Calculated (Intel vs AMD)

The methodology for determining TDP is not universal: Intel and AMD have their own approaches, which, if superficially similar, can produce different results. If we compare processors with the same formal TDP (say, 65 watts) from both manufacturers, in reality, under full load, one CPU can consume 70 watts and the other 95 watts, and this will still correspond to their officially declared TDP.

Intel

Intel specifies a basic TDP indicator, which often corresponds to the power consumption at the base clock frequency (that is, without taking into account Turbo Boost). When the turbo mode is turned on, the processor can briefly surge in consumption to the PL2 level—this is the so-called Power Limit 2, which can exceed the nominal TDP by 20-30% (and in some cases more).

As a result, we get a situation where the official TDP number is, for example, 65 watts, but the actual peak power can reach 120-150 watts with Turbo Boost. In the 12th generation and above, Intel replaced TDP terminology with processor base power. Recent generations have more complex PL1/PL2/PL4 limits. Base TDP assumes all cores at the base clock, which rarely happens in real use.

AMD

AMD specifies TDP in the range (for example, 65 watts, 105 watts, etc.), but modern models have Precision Boost and PBO (Precision Boost Overdrive) mechanisms that allow the processor to dynamically get to higher voltage and frequency values. Peak power consumption can also exceed the rated TDP if the motherboard (VRM module, BIOS) and cooling allow you to work without overheating. AMD’s calculation is closer to sustained load, not base clock like Intel.

To summarize, each company calculates TDP as it sees fit for its usage models. At the same time, TDP does not necessarily reflect the actual figures in peak CPU usage.

TDP and Power Consumption

One of the most common myths is that the TDP is completely equal to the processor’s power consumption from an outlet or a power supply. In fact, in games, benchmarks, or rendering, the processor can temporarily go far beyond the nominal TDP. Conversely, with a light workload, the processor will work much more economically, reducing frequencies and voltages.

For example, Intel Core i7 or i9 processors can have a nominal TDP of 65 watts or 125 watts, but in stress tests (Prime95 or Cinebench R23), the actual power consumption often exceeds 150-200 watts. This is because boost algorithms do not limit the instantaneous power supply in the first seconds or even minutes of the load. The motherboard gives the green light to the CPU until it reaches either the temperature limit or the power limit (PL2).

Undervolting

The concept of undervolting (reducing core voltage) and special modes like AMD Eco Mode demonstrate the flexibility of TDP. If you lower the voltage or turn on Eco Mode, the processor starts consuming less power, and it can be assumed that its effective TDP is reduced. This proves once again that TDP is a rather arbitrary value tied to the basic factory settings.

How TDP Affects CPU Cooling

Many users look at the CPU’s TDP to understand how powerful a cooler should be. In general, this is the correct logic—an air cooler or a water cooling system should have at least the same or greater dissipation capacity as a TDP.

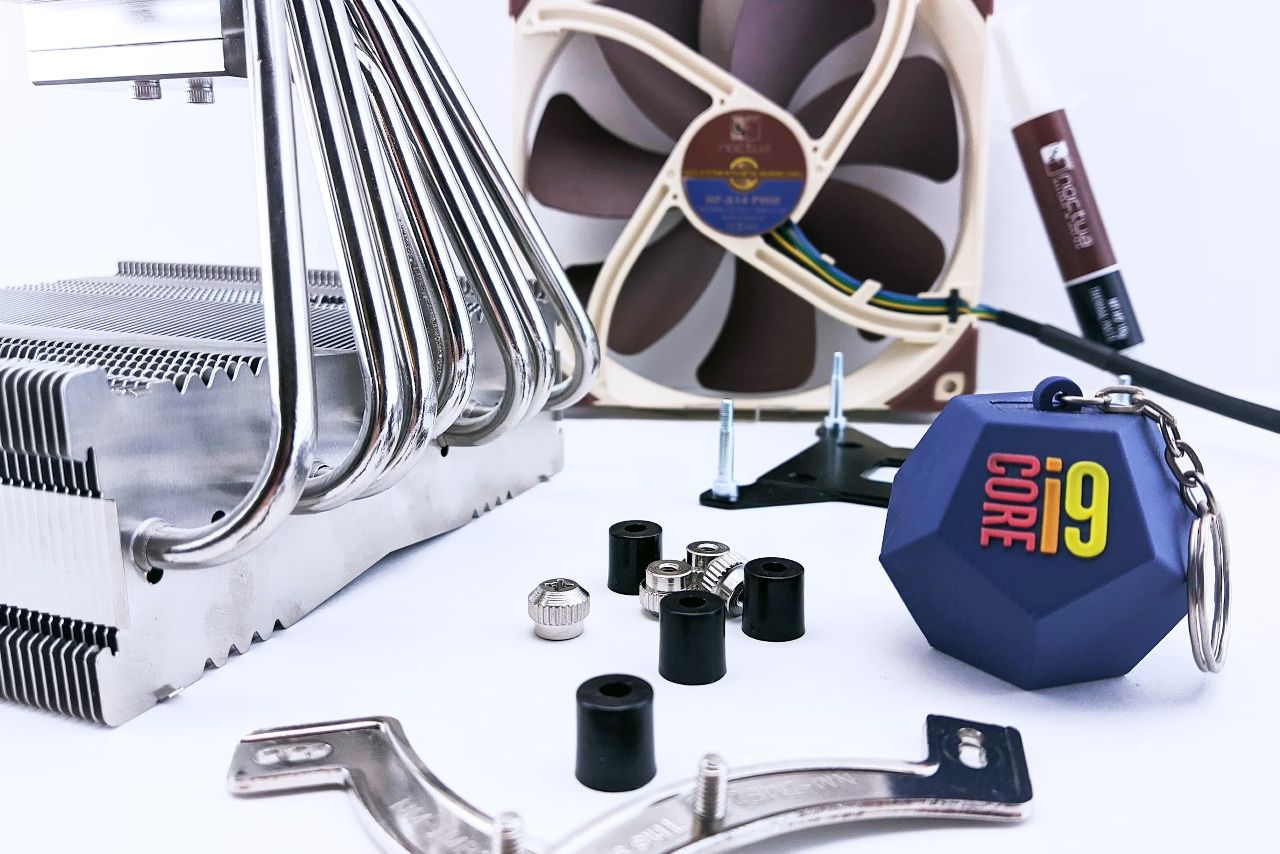

Air cooling

Air coolers are classified according to many parameters. Manufacturers often indicate the approximate value of the cooler’s TDP compatibility—say, 95 watts, 150 watts, or even 250+ watts. Of course, these are simplified guidelines, but they help to match the cooler with the processor.

For example, if you have a CPU with a claimed TDP of 65 watts, then a cooler designed for +-100 watts is usually enough to keep the temperature within acceptable limits. But if a lot of rendering or similar CPU-heavy tasks are planned, it is better to consider taking a model with a higher margin.

Liquid cooling

Closed-loop (AIO) and custom-built LCS are supposed to dissipate heat more efficiently. A large-area radiator (240 mm, 360 mm, etc.) is better for keeping the temperature under workload. However, it is important to remember that eventually the heat is dissipated into the air inside the case anyway, so high-quality ventilation of the PC case is also necessary.

It is often chosen for top-end CPU models with a TDP of 125-150 watts or higher (in the case of HEDT platforms). Even a small 120 or 140 mm AIO can handle a TDP of 95-125 watts, but for demanding tasks, it is more reliable to take 240/280/360 mm in order to have a cooling margin.

Even the most expensive cooling system will not perform at its best if it is not properly installed or if the thermal paste is distributed unevenly (gaps, excess, uneven layer). The uniform contact of the cooler sole with the CPU cover is the key to a stable temperature. And this is directly related to how the actual heat from the processor is transferred to the radiator.

How TDP Works in Laptops and Mobiles

Laptops have their own special rules. Here we use other TDP values: 15W, 25W, 35W, 45W, etc. are common. But it is much more difficult to dissipate heat in a thin case.

Ultrabooks

Many ultrabooks are equipped with 15-watt chips capable of boosting to 25 watts or even 30 watts in a short time. But the ultrabook’s case is so compact that the cooling system (thin heat pipes, small fans) cannot dissipate heat as efficiently. The result is that the processor runs at higher frequencies for a while, then heats up and throttles.

Gaming laptops

Gaming and workstation laptops can have processors with 45 watts of TDP and a video card that also contributes to heat generation (often another 80-150 watts). Here, manufacturers install more massive cooling systems (two fans, a thicker case) to dissipate a total of 150-200 watts of heat.

Dynamic power management

Dynamic voltage and frequency scaling (DVFS) technology is especially important in mobile platforms, where the CPU or system changes voltage and clock frequency on the fly for a specific task. This is the flexibility of TDP in action—if the CPU realizes that it lacks the thermal and electrical limits, it resets the frequencies. This is the difference between the rated power and how the device behaves in real life.

How TDP Impacts Overclocking

When it comes to overclocking, the actual TDP value can rise significantly above the factory statements. Overclocking involves increasing the multiplier (frequency) and often the voltage across the cores. Any increase in voltage leads to a disproportionately greater increase in heat generation.

Actual overclocking

During manual overclocking, the user sets the voltage and frequency values himself. If you take a processor with 95 watts of TDP, then with aggressive overclocking it can eat 140-160 watts (or even more). Therefore, not only the cooler must have a reserve, but also the motherboard with a powerful power subsystem (VRM) capable of providing stable voltage.

Automatic boost technologies

Intel’s Turbo Boost, AMD’s Precision Boost and PBO are kinds of built-in automatic mechanisms similar to overclocking (but it’s not overclocking). They can already exceed the basic TDP level in normal operation if the temperature and power consumption allow. For example, Intel Multi-Core Enhancement (MCE), a setting in the BIOS on some boards, often removes all limits and allows the processor to operate at a high frequency for longer than prescribed by official specifications. In this case, the TDP on paper remains the same, but in fact we get a much higher heat dissipation.

Risks

The higher the actual heat output, the more likely it is to overheat if the cooling system fails. The load on the motherboard’s VRM is also increasing. And, of course, energy consumption is increasing, which can affect electricity bills and system noise (fans will spin up more).

TDP in PC Assembly

When assembling a new PC, it is important to correlate all the components: CPU, GPU, PSU, motherboard, cooler, and more. The TDP of the processor is just one element of the system.

PSU selection

One can find the opinion that if you have a TDP of a processor of 65 watts, and a video card of 150 watts, then theoretically there is enough power supply for 300 watts with a small margin. In practice, it is better to take at least a 600-watt PSU with 80 PLUS certification (Bronze, Gold, etc.) and power with a margin. After all, peak consumption may be higher, and besides, the power supply unit should not be constantly loaded at 100% of its nominal value.

PC case and ventilation

Even if you have a high-quality cooler for the processor, hot air should still be discharged from the case. Poor ventilation causes heat to accumulate inside, and the cooler’s efficiency decreases. Therefore, a competent organization of air flows is needed.

Cooling reserve

Ideally, always take a cooler that is slightly more powerful than the formal TDP of the processor. This provides the following advantages:

• Less noise (the cooler runs at a lower RPM).
• The temperature is better maintained during surges.
• Reserve for the future.

TDP Numbers vs Reality

It’s no secret that manufacturers benefit from specifying attractive numbers in the specifications. There is a certain marketing game associated with TDP. The buyer, seeing only 65 watts, may think that the CPU will be cold, and the PSU will require a minimum of power. However, in real-world review tests, it often turns out that the processor exceeded the rated TDP during a long work.

Underestimation or optimistic calculation

Manufacturers can choose a specific test scenario in which the processor does not achieve maximum boost for a long time. Thus, the average heat dissipation value remains within the TDP. As soon as the user launches conditional Blender or Prime95, the situation changes.

Reviews and independent tests

To really understand how many watts a particular CPU consumes, it’s better to watch independent tests. Specialized resources measure the system’s power consumption in idle time, in load, and short and long stress tests. Direct experiments are often carried out, recording both the temperature and the consumption from the outlet (with a certain efficiency of the power supply).

Long-term stress tests

Sometimes you can see that the processor consumes high power only in the first 1-2 minutes, and then drops to a more modest level. These are the turbo timers (Intel’s PL2 time). If the load lasts longer in real-world work tasks, such as video rendering, the processor will inevitably reduce frequencies, reaching a more modest level of heat dissipation.

TDP and Next-Gen CPUs

As processors become more and more multicore, the concept of TDP is evolving. New technological processes (5 nm, 4 nm, 3 nm) are also affecting, allowing more transistors to be placed and frequencies to be raised while maintaining the same crystal area.

In the future, processors can be expected to manage their heat pack more and more intelligently, predicting loads in advance and optimizing temperature. Perhaps we will see more precise figures in the specifications, but most likely, the concept of TDP will remain a conditional guideline, not a strict number.

FAQ

What does TDP mean and what does TDP stand for?

TDP stands for thermal design power—the amount of heat a CPU or other PC part is expected to generate under a standard workload.

What is TDP in a CPU?

TDP CPU refers to how much heat the processor produces and how much cooling it requires to run safely.

Does TDP equal power consumption?

No. TDP is about heat, not exact power draw. Actual CPU power usage can exceed TDP, especially under boost.

Is TDP important when choosing a cooler?

Yes. TDP helps match the CPU with a cooler that can handle the heat output without thermal throttling.

Summary

TDP is one of the key but often misunderstood parameters when choosing or operating a CPU or GPU. It indicates how much heat the cooling system will have to dissipate in the nominal mode. But today’s realities of computer technology, with their dynamic frequencies and power consumption, make TDP only a guideline that can be significantly exceeded in short-term or specific loads.

The main practical conclusion for the user is that the TDP limit should not be perceived as a hard limit of consumption. It is better to have a reserve for cooling and power supply so that the system remains stable and quiet. If you are planning overclocking, it is worth remembering that the cooling and power requirements can increase dramatically.

The growing trend towards hybrid architectures, a growing number of cores, and increasingly subtle technical processes indicate that the concept of TDP will only become more complex. Always keep in mind that TDP is only one part of the puzzle, and check the results of independent reviews and tests, which indicate the actual power consumption and heat dissipation. Also, look at complete PC rigs instead of individual parts. This approach will allow you to build or buy a system that optimally meets your needs.
